Hot Sale 63A LED display dual power automatic transfer switch

posted in: Other Switches | 0
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
REHE
Model Number:
RH-ATSQ1Z
Max. Current:
63A
Max. Voltage:
AC 400V
ATS Operation type:
ATS dual power switch
ATS Rated Current:
10,16,20,25,32,40,50,63A
Number of poles:
2/3/4 poles
Frame Class:
63
ATS function:
LED display,with fire protection
ATS Function:
Fire controlling and generator starting
ATS classification:
Circuit breaker
ATSE:
Class CB,with overload and short circuit protection
Control device:
Built-in controller
ATS size:
258*125*111mm
SupplyAbility:
2000 Piece/Pieces per Day Dual Power Automatic Transfer Switch
Packaging Details
Package of the double power switch : Polybag & Paper box & Export carton

Delivery Detail: within 15 days after confirm the receipt of the payment

Port
Shanghai/Ningbo
Lead Time:
Shipped in 3 days after payment
ATS Description

Product Application



RH-ATSQ1Z Dual Power Automatic Transfer Switch (A.T.S for short) applies to the  double-loop power supply system that 50Hz/60Hz, rated operating voltage 220V(2Poles),380V (3Poles and 4Poles), rated current 10 ~ 63 A. It can automatically switch the normal power to reserved power to prove the reliability of power supply, mainly used for fire pumps, smoke fans, elevators, pumps, lighting in high-rise buildings, shopping malls and other places.

When the main power supply is normal,using the automatic model,the circuit breaker of reserve power supply is off,the circuit breaker of main power supply is on.When one phase or all three phase of the main power supply is off,the ATS will convert to the reserve power supply(the reserve power is normal),when the main power is normal,the reserve power will recover back to main power again.

Rated Current
10A
16A
20A
25A
32A
40A
50A
63A
Shell
63A
Working Voltage
AC400V
Controling Voltage
AC220V
Frequency
50/60HZ
Standard
GB/T14048.11
Inside Structure
ATS Details

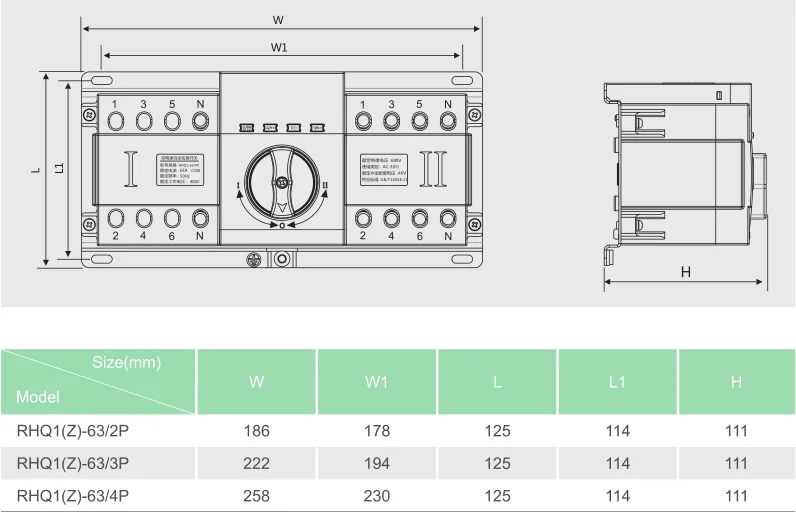

Sketch:

1.Control device:Built-in controller;



2.Product structure:small volume,large current,simple structure,ATS integrative;



3.Characteristics:Fast switching,low failure rate,easy maintenance,reliable performance;







4.Connection:Wiring in front of the plate;
5.Transformation:Power grid to power grid,power grid to generator,and automatic recovery;
6.Number of poles:2/3/4 poles.

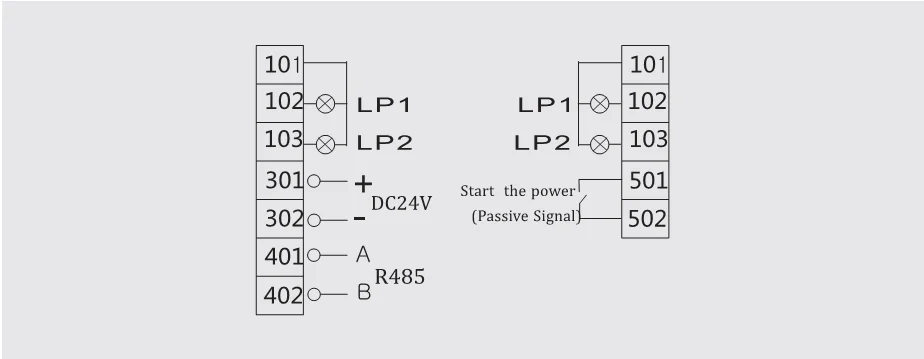

Wiring Instructment

101: 3 poles ATS,the netural terminal of main power and the netural terminal of external indicator ;
LP1: Main Power Indicator
LP2: Main Power On-Indicator
LP3:Reserve Power On-Indicator
LP4:Reserve Power Indicator
201: 3 poles ATS,the netural terminal of reserve power and the netural terminal of external indicator ;

301、302:Fire Forced Switching(Active DC24V)
501、502:Start the Power(Passive Signal)
Remarks:Basic Model don’t have the terminals
301、302、401、402、501 and 502;Fire Control Model,Without 501、502 terminal;

Calibration
Packing & Delivery
Dimension       (CM)
            26.5(L) * 17.5(W) * 19 (D)
   Quantity           (PC)
                        1 PC/BOX
   Weight          (KGS)
                          2.25KGS
Packaging
Size
54.1(L) *46.1(W) * 38 (D)
Weight
25KGS
Quantity
10pcs/ctn
Certifications

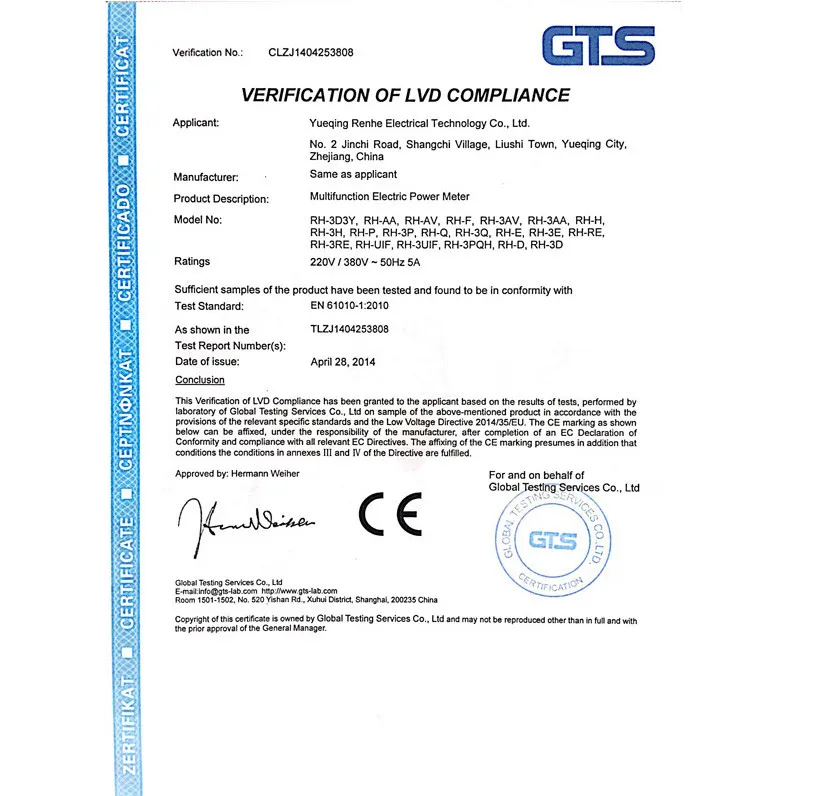

Digital meter CE certificates

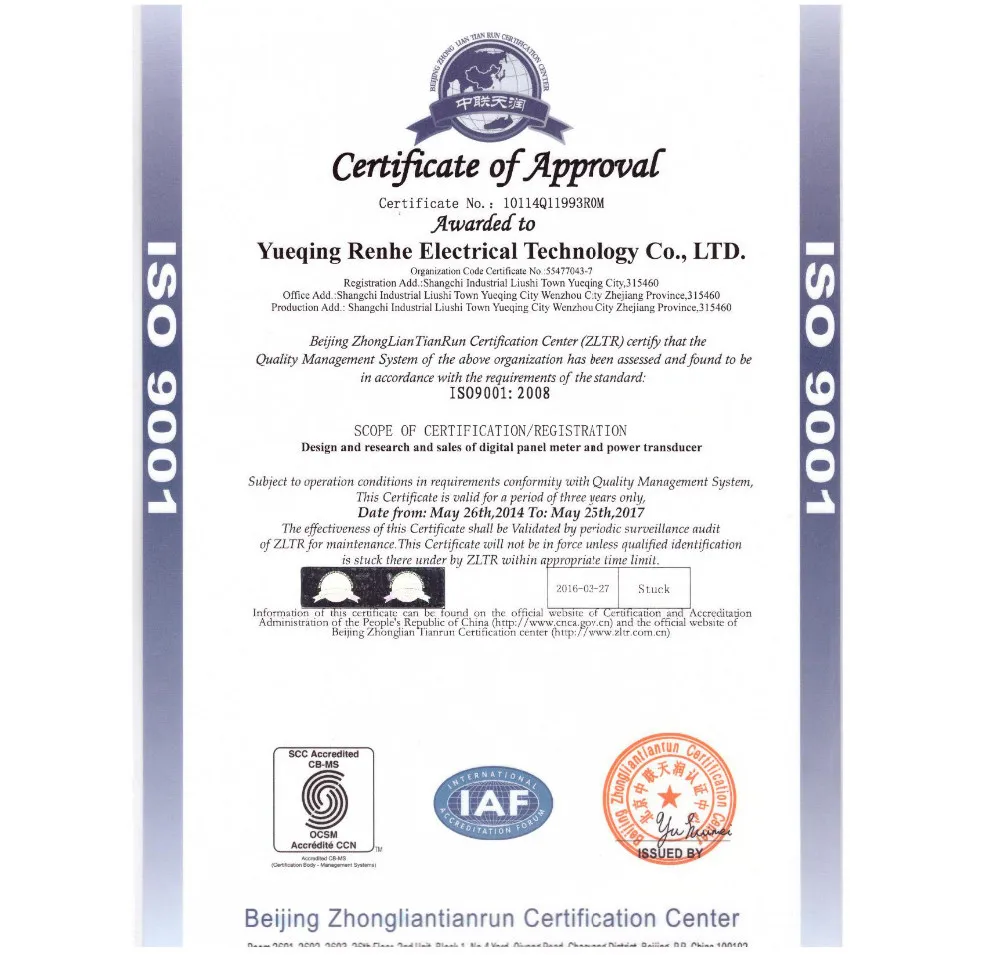

Digital meter ISO certificates

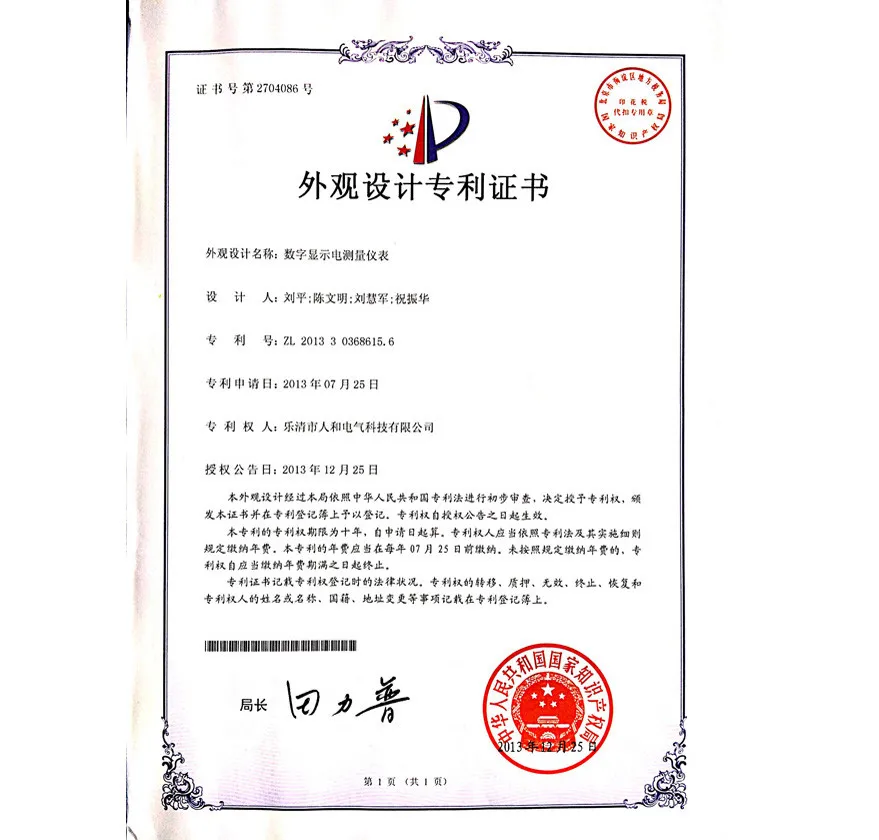

Digital meter design patent certificates

Our Service

Why choose us ?

Our advantages

1.OEM available.Experienced intelligent digital meters product supplier .



2.The professional design team and sales department for your service.100% test for air pressure and inspection for product appearance before shipment

3.Alibaba golden supplier, factory recognized by CE/FSC/ISO9001 and so on

4.7/24 Service for you, all the quotation will be dealt within 24 hours .

5.Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory.

6.Strict Requirement: Our company always insist on these principles “Do serve every user sincerely. Do win more market shares based on mutual benefit.Do keep innovation to promote ourselves”.

Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click ‘Confirm Order Received’ or exceed confirmation time.frame) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.

Seller Service
On-time Delivery .If you do not receive your purchase within 20 days, you can ask for a full
refund before order completion (when you click ‘Confirm Order Received’ or exceed confirmation time frame)
